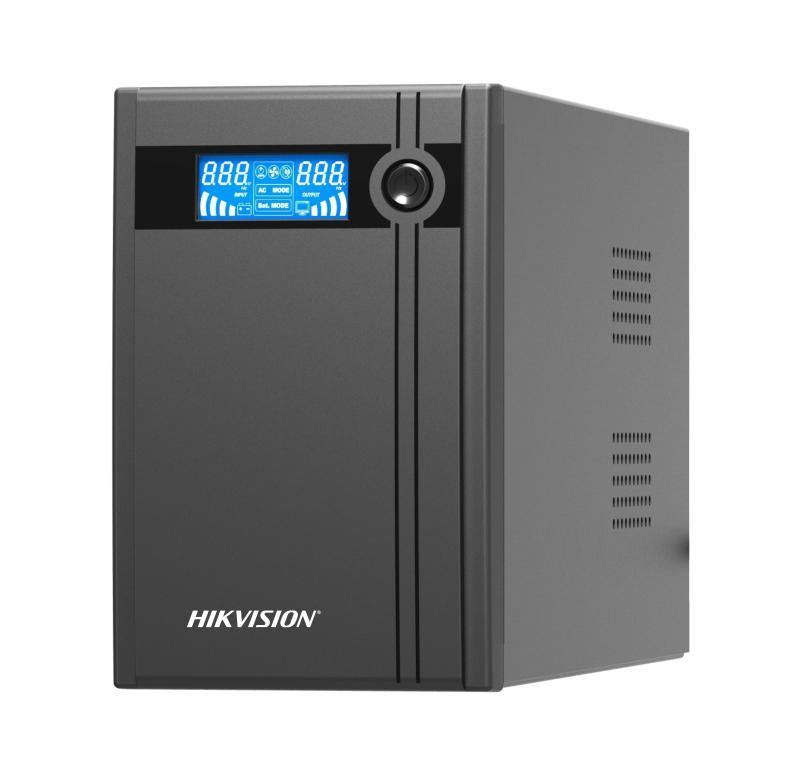

HIKVISION UPS DS-UPS2000

The HIKVISION UPS DS-UPS2000 provides reliable backup power protection., keep your equipment running during power outages.

• Power
• UPS Capacity2000 VA / 1200 W

• Input
• Input Voltage Range140 VAC to 290 VAC
• Input Frequency50/60 Hz self-adaptive
• Plug TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);UK TYPE G;TYPE L (10A);Schuko

• Output
• Output Voltage Range210 VAC to 235 VAC
• Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
• Transfer Time≤ 10 ms
• WaveformPWM
• Outlet TypeAU TYPE I;TYPE H;Universal;TYPE L (10/16A);Schuko
• Outlet Number2;4

• Battery
• Battery Type12 V/9 Ah *2 pcs, lead-acid battery
• Recharge Time6-8 hours recover to 90% capacity
• Typical Backup Time

  Run time at 100w: 70 min

  Run time at 300w: 17 min

  Run time at 600w: 5 min

• Interface
• Communicate PortsUSB

• Protection
• Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

• Indicator
• Display

  LCD Screen

  Input Voltage, Output Voltage, Battery capacity, load level

• Alarm

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

• General
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56")
• Approx. 11 kg (24.3 lb)
